Umuyoboro wo hejuru wo hejuru wicyuma Umugozi

Umuyoboro wohejuru wo hejuru Icyuma Cyuma Umugozi Werekanwe

Ibisobanuro bigufi:

Inzitizi ntoya cyane zitwara abagenzi zikoreshwa mugozi wumugozi. Mu turere dutuyemo ubucuruzi, umugozi wumugozi wa lift uzamura muri rusange ni 8 * 19S + FC-8mm, 8 * 19S + FC-10mm.

Ohereza imeri kuri twe

Ibicuruzwa birambuye

Ibicuruzwa

Ibipimo byibicuruzwa

1.Ibi bisobanuro birakwiriye kwihuta umuvuduko wumugozi winsinga, umuvuduko muke, umutwaro muto

2.Turashobora kandi kwihitiramo dukurikije ibyo usabwa.

Umugozi Nominal Diameter	6 * 19S + PP	Umutwaro Ntarengwa
	Uburemere bugereranijwe	Dual Tensile, Mpa		Umuyoboro umwe, Mpa
	Uburemere bugereranijwe	1370/1770	1570/1770	1570	1770
mm	Kg / 100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

1.Ibisanzwe bya fibre fibre (NFC): Birakwiriye umugozi winsinga ya mashini ikurura ifite umuvuduko wateganijwe ≤ 2.0m / s

2.Uburebure bwubaka≤80M

Umugozi Nominal Diameter	8 * 19S + NFC	Umutwaro Ntarengwa
	Uburemere bugereranijwe	Dual Tensile, Mpa		Umuyoboro umwe, Mpa
	Uburemere bugereranijwe	1370/1770	1570/1770	1570	1770
mm	Kg / 100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Ku IWRC, umuvuduko> 4.0 m / s, Uburebure bw'inyubako> 100m

2.Ku IWRF, 2.0

Umugozi Nominal Diameter	8 * 19S		Umutwaro Ntarengwa
	Uburemere bugereranijwe		Umuyoboro umwe, Mpa
	Uburemere bugereranijwe		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg / 100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Amakuru y'ibicuruzwa

Inzitizi ntoya cyane zitwara abagenzi zikoreshwa mugozi wumugozi. Mu turere dutuyemo ubucuruzi, umugozi wumugozi wa lift uzamura muri rusange ni 8 * 19S + FC-8mm, 8 * 19S + FC-10mm. Amaduka acururizwamo akoresha umugozi munini cyane wa lift ya 12mm, 13mm, hamwe nu mutwaro wicyuma cya lift ya 12mm, 13mm, na 16mm ya diameter.

Mugutumiza umugozi wicyuma, urasabwa kuduha amakuru yuzuye nkuko byavuzwe hepfo:

1. Intego: Kuri uwo mugozi uzakoreshwa;

2. Ingano: Diameter yumugozi muri milimetero cyangwa santimetero;

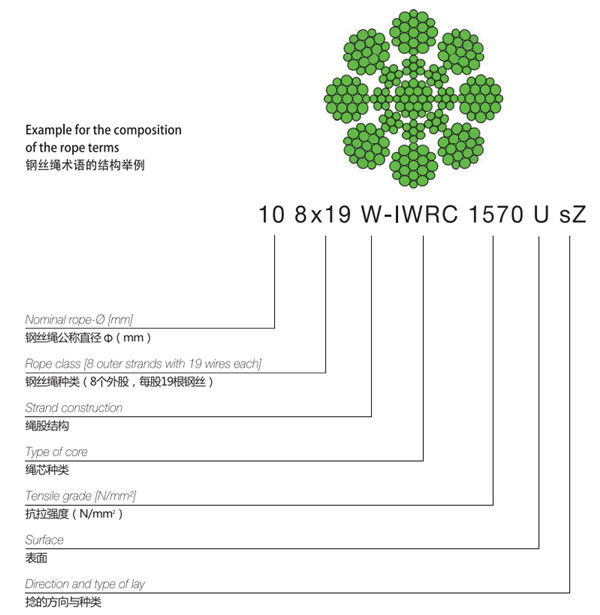

3. Ubwubatsi: Umubare wimigozi, umubare winsinga kumurongo hamwe nubwubatsi bwa stand;

5. Kurambika: Iburyo busanzwe busanzwe, ibumoso busanzwe, Iburyo bwiburyo,

6. Ibikoresho: Umucyo (ungalvanised), ibyuma bisya cyangwa bidafite ibyuma;

7. Urwego rwicyuma: Imbaraga zingirakamaro zinsinga;

8. Gusiga: Niba amavuta yifuzwa cyangwa adakenewe kandi asabwa amavuta;

9. Uburebure: uburebure bw'umugozi;

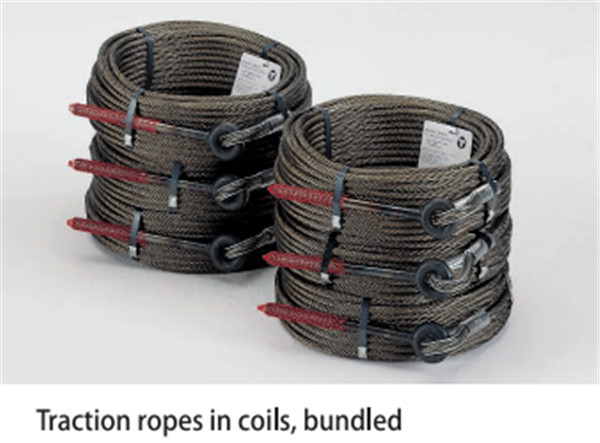

10. Gupakira: Muri coil zipfunyitse impapuro zamavuta nigitambara cya hessian cyangwa kumutwe wibiti;

11. Umubare: Ukurikije umubare wa coil cyangwa reel kuburebure cyangwa uburemere;

12. Ijambo: Ibimenyetso byo kohereza nibindi bisabwa bidasanzwe.

Mugihe cyibikorwa byigihe kirekire, amavuta yo kwisiga kumugozi winsinga azagabanuka buhoro buhoro. Niyo mpamvu, birakenewe ko umugozi winsinga uhora usiga amavuta, ushobora kongera igihe cyumurimo wumugozi winsinga, kandi ukagabanya kwambara no kwirinda ingese ukoresheje amavuta. Ugereranije nu mugozi wamavuta wuzuye, ubuzima bwumurimo wumugozi wumye urashobora kugabanuka kugera kuri 80%! Kuvugurura umugozi winsinga bigira uruhare runini. Mubisanzwe duhitamo amavuta yo kwisiga T86, namazi yoroheje cyane ashobora kwinjira byoroshye imbere yumugozi winsinga. Irakeneye gusa guswera cyangwa gutwara litiro 1 yikuramo kugirango uyite. Ahantu ho gukoreshwa hagomba kuba aho umugozi winsinga ukoraho igikwega cyangwa uruziga ruyobora, kugirango amavuta yumugozi wumugozi ashobora gutembera mumugozi winsinga byoroshye.
