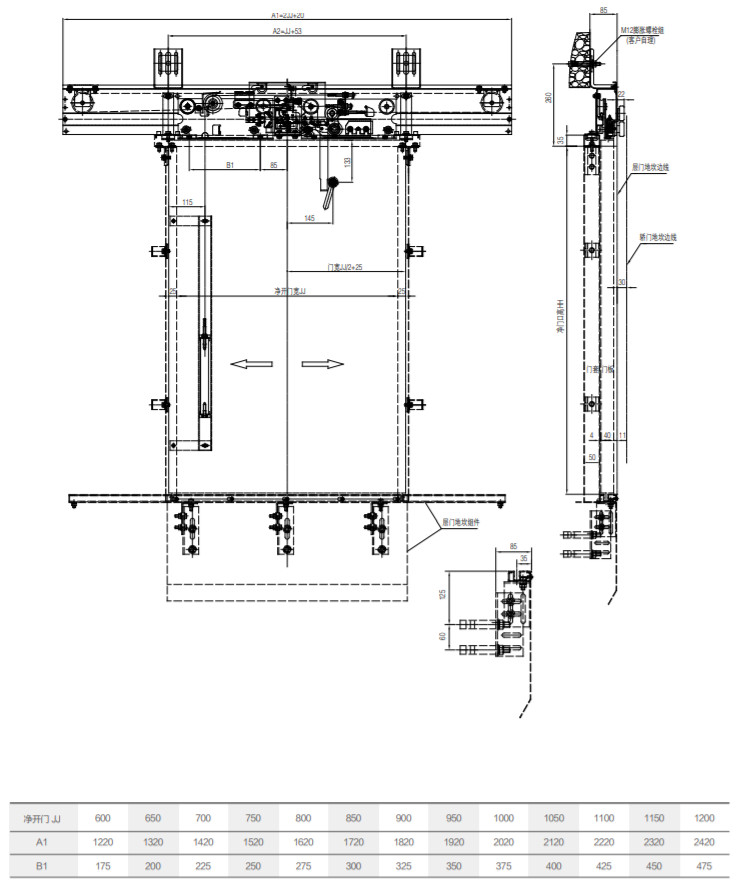

2-Ikibabi cya Centre Gufungura ibikoresho byo kumanura urugi THY-LD-B
1. Uburyo bwo gufungura ni ugukingura urugi rwumuryango hanyuma ugatsinda ikizamini cya pendulum ya 45Kg.
2.
3. Gufunga umuryango byatsinze ikizamini cyikigo cyigihugu gishinzwe kugenzura inzitizi kandi cyabonye CE na CU-TR.
4. Umuvuduko ukoreshwa wumuryango wugaye: ≤ AC230V, ≤ DC110V.

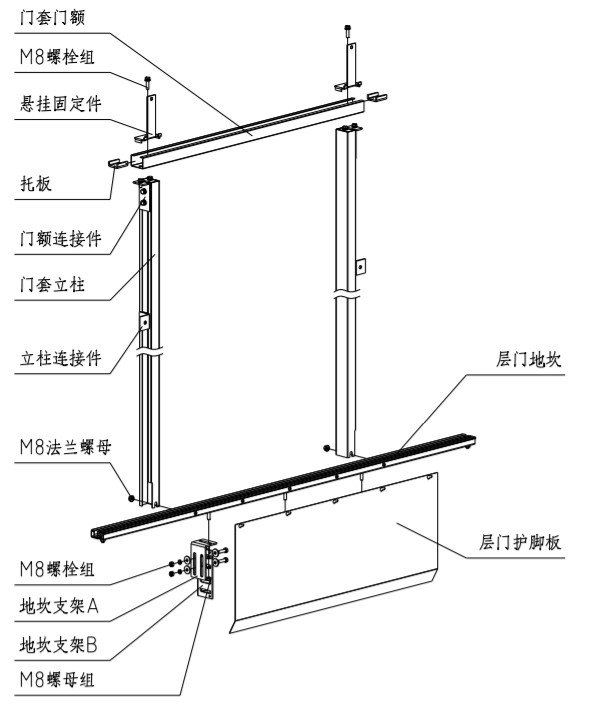

1. Gushiraho sill hamwe nigifuniko cyumuryango
1.1. Menya aho winjirira nogusohoka wa sill ukurikije ubunini bwumuhanda; hindura hagati ya sill kugirango ube kimwe na centre yo kwinjira no gusohoka, hanyuma ushire akamenyetso hagati ya sill; hindura urwego rwa sill kuba munsi ya 1/1000; Ubuso kugirango wirinde amazi kwinjira munzira.
1.2. Kusanya inkingi yumuryango wumuryango hamwe numuryango utwikiriye urugi hamwe nibice bihuza, hanyuma ushyireho ibice bimanikwa; shyira umuryango kuri sill, uhindure vertical yinkingi yumuryango kugirango utageze kuri 1/1000; hagati yumupfundikizo wumuryango uhuza hagati yubwinjiriro kandi usohoka Sill center ikimenyetso cyo gupima; ingano yindege yo hepfo yuruhande rwumuryango kandi indege yo hejuru ya sill nuburebure bwurugi. Nyuma yo guhinduka birangiye, funga ibinyomoro bya M8. Nyuma yo guhindura ingano, kora inkingi ihuza urukuta.
1.3. Shyira kumurinzi kumuryango urinda urutoki.

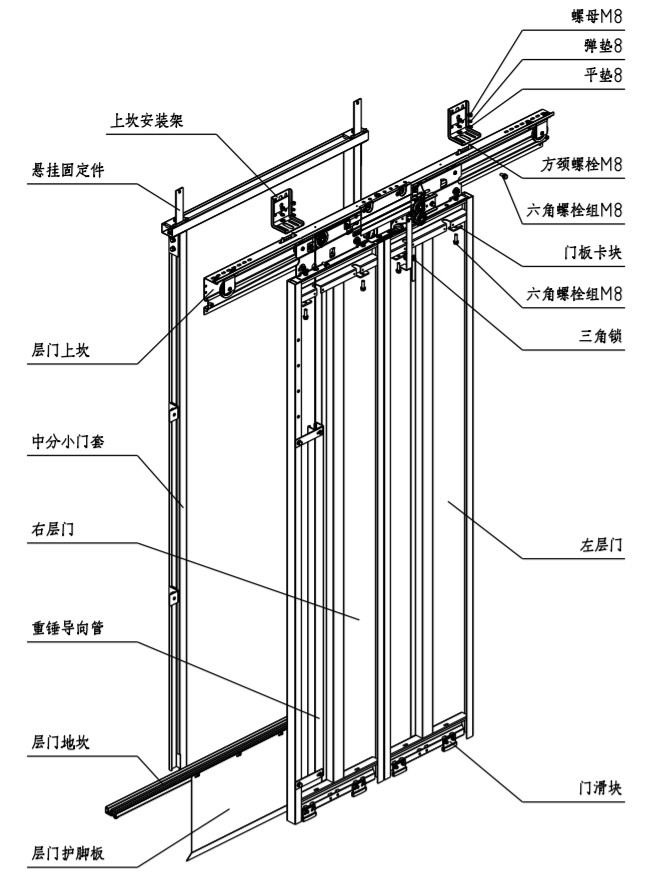

2. Gushiraho ibikoresho byumuryango bigwa

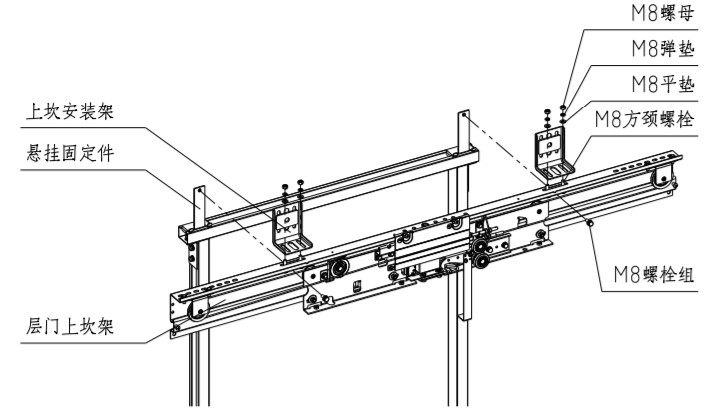

2.1. Huza ikariso yo hejuru yumuryango winjira hamwe na barb kumpera yo hepfo yikigice cyo gukosora, hanyuma ufunge ikariso yo hejuru hamwe nigice cyo guhagarika igice cyumuryango winjira unyuze mumatsinda ya M8 * 20.
2.2. Shyira hejuru ya sill yo hejuru hejuru kurukuta rwo hejuru hamwe no kwaguka cyangwa kunyura kurukuta. Ikariso yo hejuru yo kwishyiriraho hamwe no kumanuka kumuryango wo hejuru sill ihujwe na M8 kare ijosi.
2.3. Hindura sill yo hejuru yumuryango wamanuka ibumoso n iburyo kugirango urugi rwumuryango rufungurwe hamwe hagati yubwinjiriro no gusohoka bihamye.
2.4. Hindura vertical ya etage yibikoresho byumuryango. Hindura vertical ya etage yicyuma cyurugo rugwa kuri ± 0.5mm ushyira umurongo uhagaze cyangwa ufata urugi rwimodoka.
2.5 Nyuma yo gusuzuma ibipimo nyamukuru byo kwishyiriraho ikariso ya sill kumiryango ikurikira, komeza ibyuma byose byubaka:

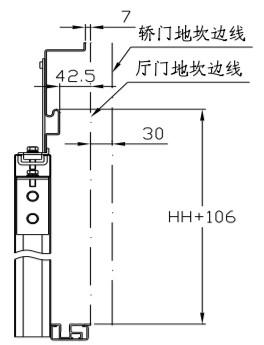

Uburebure bwikaramu yo hejuru yumuryango wururuka: intera iri hagati yubuso bwo hejuru hejuru ya sill frame yo hejuru ya gari ya moshi iyobora gari ya moshi yumuryango winjira na sill yumuryango winjira ni HH + 106mm;
Hagati yikaramu yo hejuru yumuryango winjira: gutandukana hagati yikigo cyo hejuru cya sill yo hejuru yumuryango winjira no hagati yubwinjiriro no gusohoka ni ± 1mm;
Intera iri hagati ya gari ya moshi yo hejuru ya rugi yumuryango wamanuka hamwe na sill yumuryango wimodoka: intera iri hagati ya gari ya moshi yo hejuru ya gari ya moshi yo kumuryango wamanuka na sill yumuryango winjira ni 42.5mm, naho intera iri hagati yumuryango wumuryango ni 72.5mm.
Uburebure bwikaramu yo hejuru yumuryango wururuka: intera iri hagati yubuso bwo hejuru hejuru ya sill frame yo hejuru ya gari ya moshi iyobora gari ya moshi yumuryango winjira na sill yumuryango winjira ni HH + 106mm;
Hagati yikaramu yo hejuru yumuryango winjira: gutandukana hagati yikigo cyo hejuru cya sill yo hejuru yumuryango winjira no hagati yubwinjiriro no gusohoka ni ± 1mm;
Intera iri hagati ya gari ya moshi yo hejuru ya rugi yumuryango wamanuka hamwe na sill yumuryango wimodoka: intera iri hagati ya gari ya moshi yo hejuru ya gari ya moshi yo kumuryango wamanuka na sill yumuryango winjira ni 42.5mm, naho intera iri hagati yumuryango wumuryango ni 72.5mm.
